Water Heater Installation in Diamond Bar, CA: What the Quote Should Spell Out

Replace like with like or switch fuel type?

Most replacements swap one tank for another of the same fuel, because the gas line, venting and electrical supply are already in place. That keeps the job simple. Changing fuel or type means new connections, and it is worth doing only when you have a reason.

• Gas tank: uses the existing gas line and venting, and needs a safe connection and flue.
• Electric tank: needs a circuit sized for the unit and a clear space for the tank.
• Hybrid heat pump tank: uses a heat pump on top of the tank and needs more clearance and air around it.
• Tankless: a different system with its own gas, venting and descaling needs, covered on the tankless water heater page.

Ask the plumber to explain why a change of type fits your house, not only why it is available. If the reason is only that a new unit looks efficient on paper, the like-for-like swap may serve you better.

Size the tank to the household

A tank that is too small runs out during back-to-back showers. One that is too large costs more to buy and to keep hot. Tell the plumber how many people live in the house, how many bathrooms you run at once and whether anyone fills a large tub.

The plumber should read the data plate on the old unit and tell you what the replacement matches. If the old tank was undersized or oversized, now is the time to correct it.

What your quote should include

A quote that lists only the tank and a labor figure leaves room for surprises later. Ask that these items are named, so you can compare two quotes line by line.

1. Bracing. California requires new and replacement water heaters to be braced, anchored or strapped against earthquake movement, under Health and Safety Code section 19211. An automatic earthquake shutoff valve is a different device on the gas line, so ask SoCalGas or your gas contractor about it, not the water heater quote.

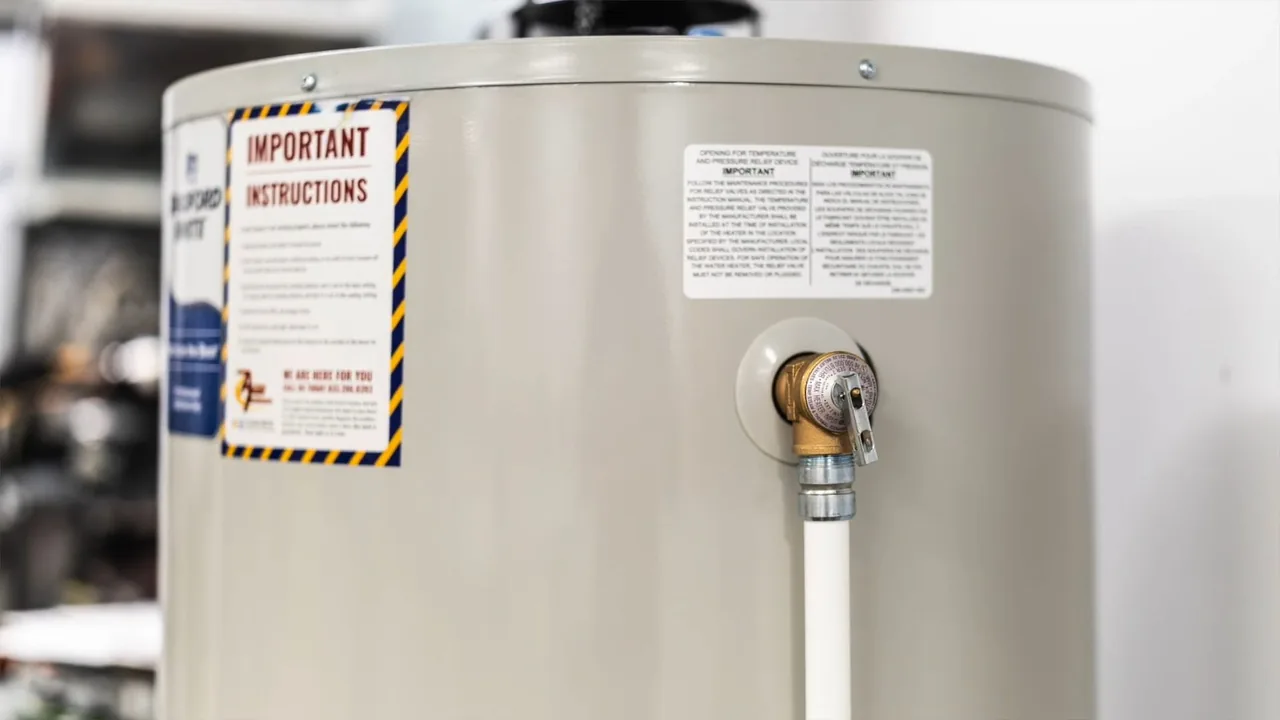

2. Code items. Ask whether the install needs an expansion tank, a relief valve and discharge line, a drain pan, or venting changes.
3. Permit. Ask whether one is needed and who pulls it.
4. Old unit removal. Ask who hauls it away.
5. Warranty. Ask what the manufacturer covers and what the installer covers.

Does this job need a permit?

The City of Diamond Bar says plumbing permits are required for all plumbing work, including water service, drains, water mains and related fixtures and appliances. Fees are based on the number and types of fixtures, drains and piping. The page does not name water heaters, so confirm for yours.

The Building and Safety Division can be reached at (909) 839-7020, and its inspection line is (909) 839-7027. City hours are Monday to Thursday, 7:30 a.m. to 5:30 p.m., and Friday, 7:30 a.m. to 4:30 p.m. A permit usually brings an inspection, so ask when it will happen and whether you need to be home.

Diamond Bar's water and the new tank

A new tank starts clean, and what happens inside it depends partly on the water. Walnut Valley Water District imports all of its supply, and its 2025 report lists about 60 percent from the Weymouth plant at an average of 234 mg/L and about 39 percent from the Miramar plant at an average of 97 mg/L. The report does not say which blend reaches which street.

If your home gets the harder blend, scale will collect on heating surfaces faster. A adding a softener is one answer, and it is easier to plan before the install than to retrofit after. Ask the plumber what water treatment, if any, they would pair with the heater.

Gas connections and safety

A gas heater has a connection and a flue that have to be right. Ask whether the plumber tests for leaks at the connection and checks that the flue draws properly. If you ever smell gas, leave the house and call SoCalGas at (800) 427-2200 from outside. Do not stay to look for the source.

If your old heater is still leaking and you are not sure it needs replacing, start with repair before replacing and decide after the plumber has looked at it.

What a tank replacement quote should list line by line

A replacement quote that gives only a total leaves you guessing about what is included. Ask for the parts to be named.

• The tank size, fuel type and the manufacturer's warranty terms.
• New flex connectors, shutoff valve, relief valve and drain pan, or a note on why each is reused.
• Seismic strapping, since California homes need it for a water heater.
• Haul away of the old tank and what happens with the permit.

Each item has a purpose, and leaving one out is a choice you should know about. Comparing two quotes this way shows quickly which one covers more.
