Trenchless Sewer Line Repair in Diamond Bar, CA: When It Fits and When It Does Not

What trenchless repair actually does

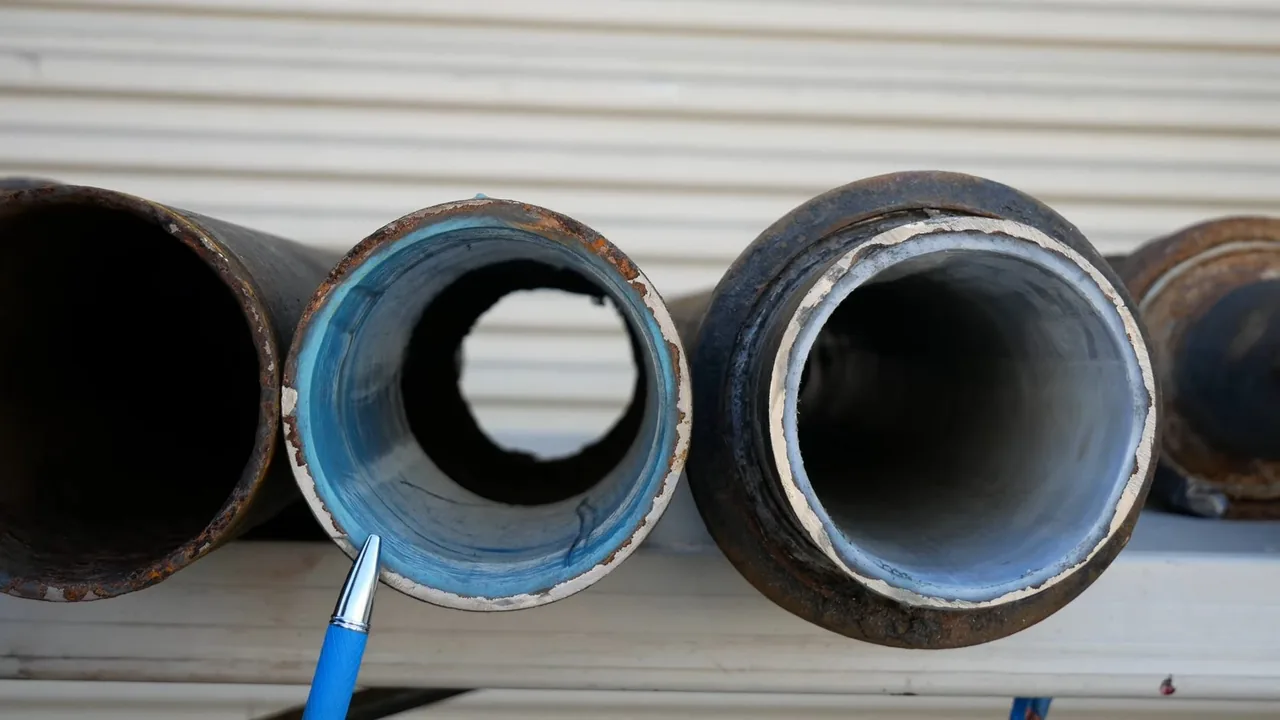

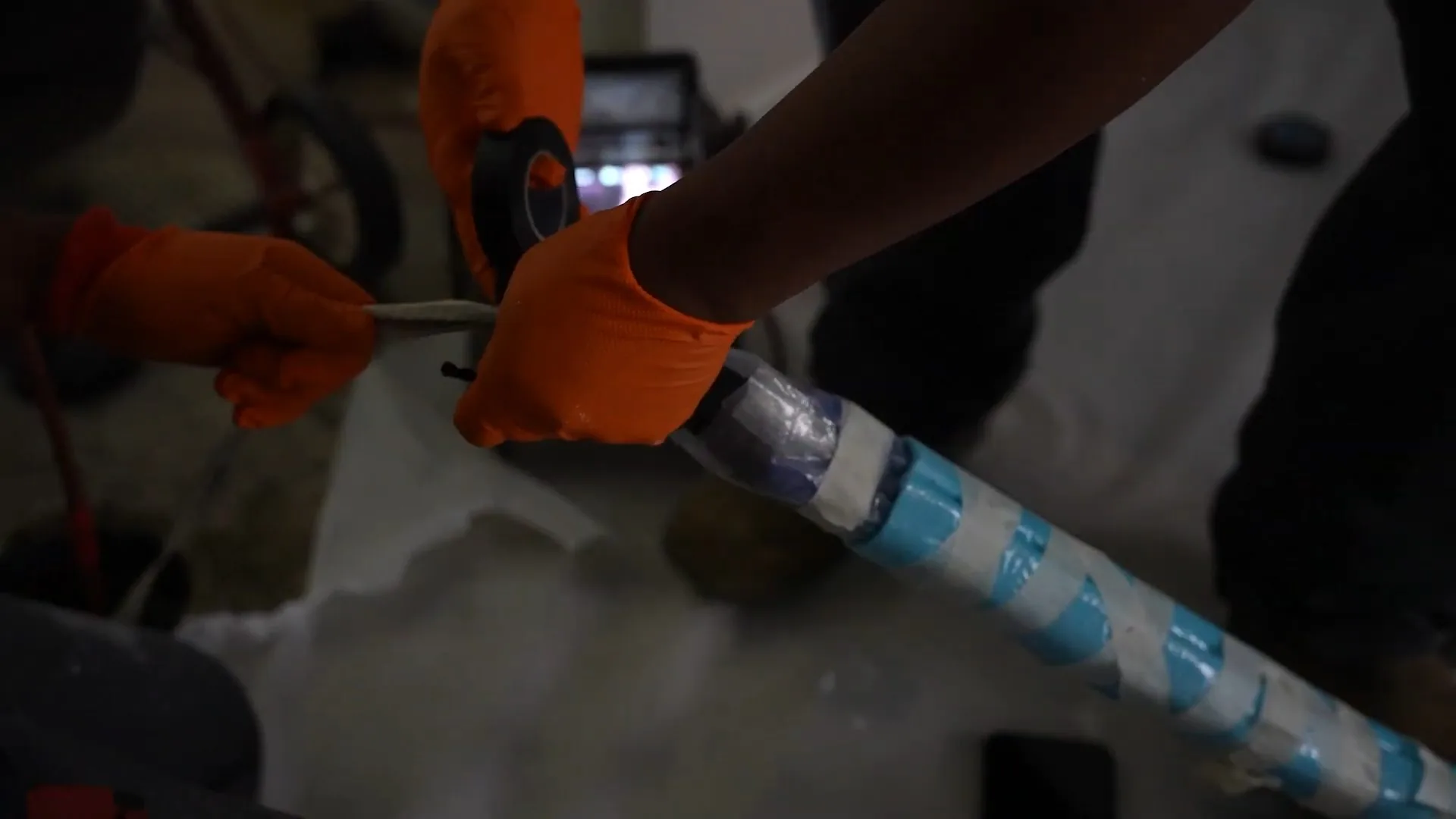

Trenchless repair works from access points, usually the cleanout and one more opening, instead of digging along the pipe. The common method lines the inside of the old pipe with a resin-soaked sleeve that hardens into a new pipe within the old one. Another method pulls a new pipe through the old path while breaking the old one apart.

Both aim to avoid cutting up the lawn, driveway or patio that sits above the line. Neither can fix every failure, and neither removes the need to know what is wrong first.

Whose pipe is it?

Los Angeles County Public Works says that sewer laterals belong to the property owner they serve. The lateral runs from the house to the public main. The public main belongs to the sewer agency, so a failure there is not yours to line or dig.

Ask the plumber to mark on the footage where your lateral ends. A trenchless quote should cover only the part you own.

Trenchless or open trench: how the footage decides

The camera shows what shape the pipe is in. A pipe that is cracked, root-invaded or leaking at joints but still round and in line is the usual candidate for lining. A pipe that has collapsed, sagged so it holds water, or pulled apart by a large gap often needs digging at that point.

What the camera shows	Likely approach
Cracks, roots at joints, pipe still round and aligned	Lining, after the pipe is cleaned
Old pipe that can be replaced by pulling new pipe through	Pipe bursting, if access allows
Collapse, large offset or a sag that holds water	Open trench at the damaged length

Ask the plumber for the footage and for an honest reason why trenchless fits or does not. If only trenchless is quoted, ask what would make open trench the better choice, and the reverse.

Why the pipe is scoured before a liner goes in

A pipe has to be clear before it can be lined, so the job often begins with scouring the pipe wall. That step is what scouring a coated pipe covers. A liner pressed against grease or scale does not bond well, so ask how the plumber confirms the pipe is clean before lining.

Call-before-you-dig and permit checks before sewer work

• 811: a utility-district page on the law says to call at least two business days before you dig, not counting the day you call, and that the call costs nothing. Ask who opens the ticket for any pit that has to be dug.
• Permit: the City of Diamond Bar says plumbing permits are required for all plumbing work, including drains and sewers. Ask who pulls it. Building and Safety is at (909) 839-7020.

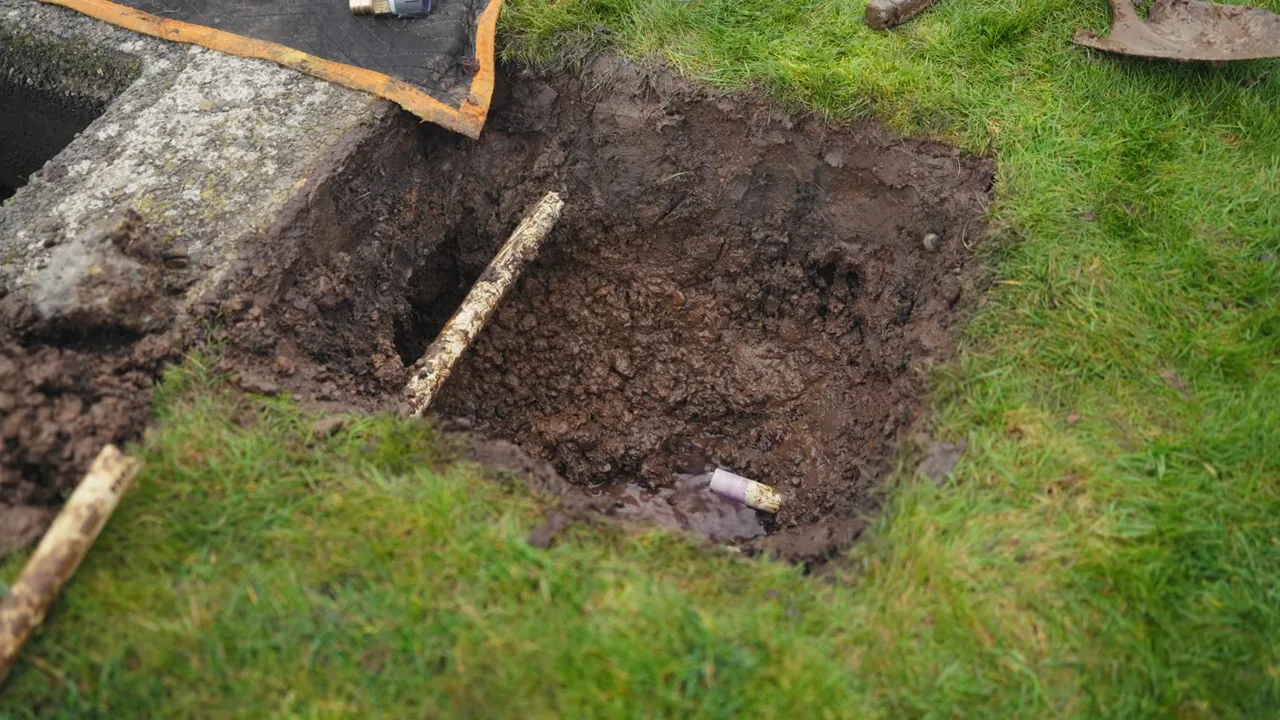

• Surface: ask where any access pit will go and who restores it afterward.
• Warranty: ask what the installer covers and for how long, in writing.

Grade problems and public mains a liner cannot fix

A liner restores the pipe. It does not fix a grade problem, such as a belly that holds water, and it does not repair a public main. It also does not replace a camera inspection after the work, which is how you confirm the new lining is smooth and the connections are open. Ask for the post-work footage and keep it with your records.

If you are still deciding whether the pipe needs more than lining, return to the broader sewer line repair options. If a backup has already wet a floor, drying after a backup is a separate service.

Commercial and multi-unit lines

A shop or multi-unit building has a larger lateral and often a manager to inform. Trenchless methods can reduce disruption to parking and entrances, which matters to a business. The decisions are the same: camera first, clean, choose the method, then confirm the permit and the warranty.

How to compare a trenchless quote with a trench quote

Two quotes for the same lateral only compare if they describe the same result. Ask each contractor to put the same details in writing.

• The length of pipe to be replaced or lined, and where it starts and ends.
• The access points, which show how much of the yard or driveway is opened.
• What happens at the connection to the main and at the house cleanout.
• Whether the camera footage before and after is delivered to you.

A lining quote that never mentions the footage is incomplete. So is a trench quote that does not say who restores the surface. Ask the question and keep the answer with the quote.
